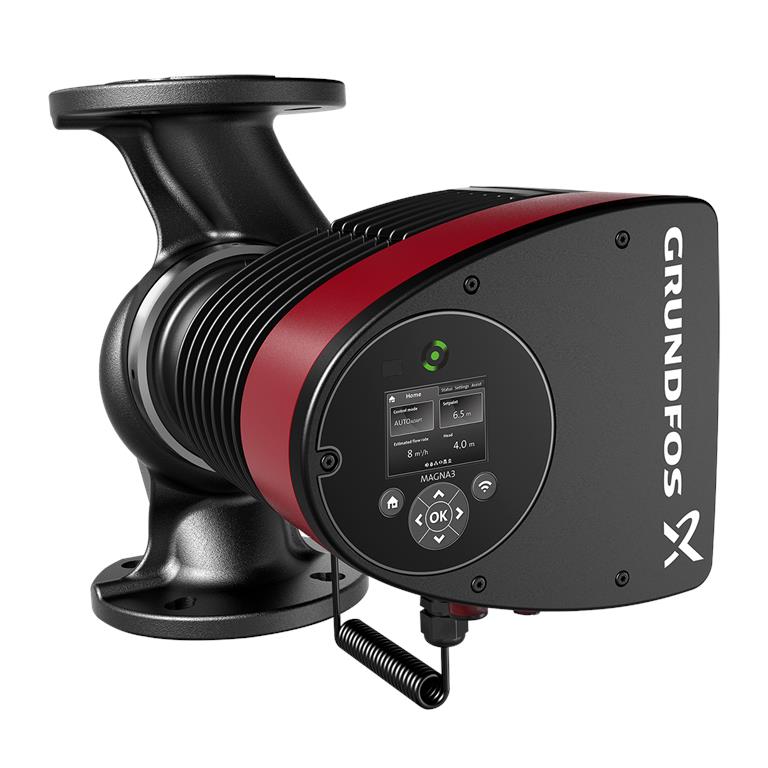

Grundfos Magna3 80-100 F / 360 mm - PN6 / 97924309
| Spanning | 230 V |
| H max Afvoerhoogte | 10 m |
| P max Maximaal ingangsvermogen | 1043 W |
| DN afvoer - diameter | 80 DN |
| Max. temperatuur van verpompte vloeistof | 110 °C |
| Max. werkdruk | 6 bar |
| Max. motorstroom | 4,69 A |
| Bestelnummer | 97924309 |
| Nominale stroomsnelheid | 33,3 m3/h |
| Nominale verplaatsing | 7,643 m |
| Variant | Prijs | Beschikbaarheid |
|---|
|
Pomp Grundfos Magna3 80-80 F / 360 mm - PN6 / 97924308
Spanning: 230 V H max: 8 m P max: 691 W DN afvoer - diameter: 80 DN Max. temperatuur van verpompte vloeistof: 110 °C Max. werkdruk: 6 bar Max. motorstroom: 3,15 A Bestelnummer: 97924308 Nominale stroomsnelheid: 28,23 m3/h Nominale verplaatsing: 6,017 m |
|
Grundfos Magna3 80-120 F / 360 mm - PN10 / 97924320
Spanning: 230 V H max: 12 m P max: 1496 W DN afvoer - diameter: 80 DN Max. temperatuur van verpompte vloeistof: 110 °C Max. werkdruk: 6 bar Max. motorstroom: 6,65 A Bestelnummer: 97924320 Nominale stroomsnelheid: 37,41 m3/h Nominale verplaatsing: 9,79 m |
|
Pomp Grundfos Magna3 80-60 F / 360 mm - PN6 / 97924307
Spanning: 230 V H max: 6 m P max: 521 W Max. temperatuur van verpompte vloeistof: 110 °C Max. werkdruk: 6 bar Max. motorstroom: 2,4 A Bestelnummer: 97924307 Nominale stroomsnelheid: 24,72 m3/h Nominale verplaatsing: 4,903 m |
