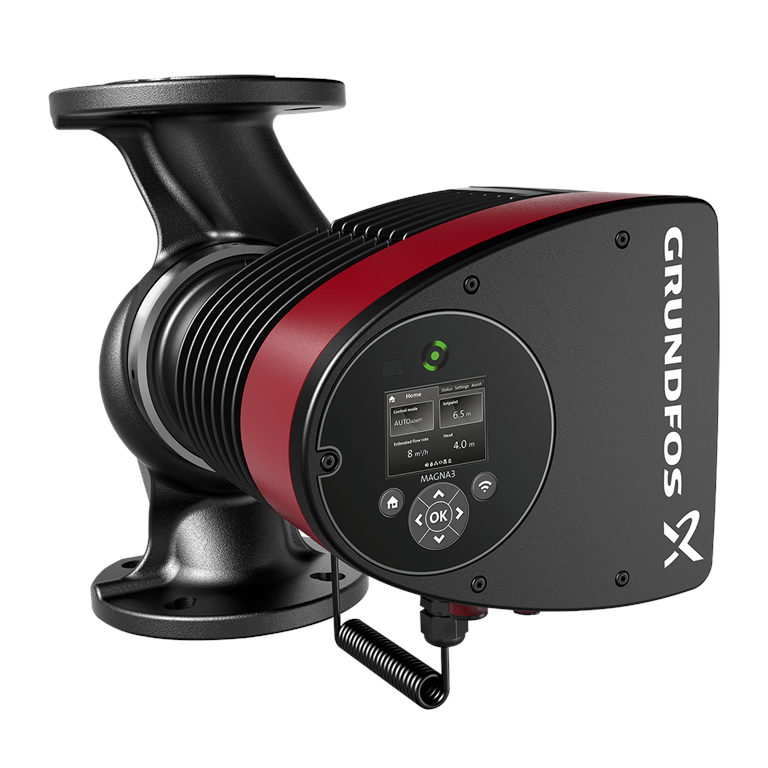

Grundfos Magna3 40-100 F / 220 mm circulatiepomp - PN6/10 / 97924269
| Spanning | 230 V |
| H max Afvoerhoogte | 10 m |
| P max Maximaal ingangsvermogen | 359 W |
| Max. temperatuur van verpompte vloeistof | 110 °C |
| Max. werkdruk | 10 bar |
| Max. motorstroom | 1.66 A |
| Bestelnummer | 97924269 |
| Nominale stroomsnelheid | 12.16 m3/h |
| Nominale verplaatsing | 6.797 m |
| Variant | Prijs | Beschikbaarheid |
|---|
|
Grundfos Magna3 40-60 F / 220mm - PN6/10 / 97924267
Spanning: 230 V H max: 6 m P max: 185 W DN afvoer - diameter: 40 DN Max. temperatuur van verpompte vloeistof: 110 °C Max. werkdruk: 10 bar Max. motorstroom: 1,58 A Bestelnummer: 97924267 Nominale stroomsnelheid: 9,4 m3/h Nominale verplaatsing: 4,28 m |
|
Grundfos Magna3 40-120 F / 250 mm - PN16 / 97924277
Spanning: 230 V H max: 12 m P max: 427 W DN afvoer - diameter: 40 DN Max. temperatuur van verpompte vloeistof: 110 °C Max. werkdruk: 10 bar Max. motorstroom: 1.96 A Bestelnummer: 97924277 Nominale stroomsnelheid: 14,14 m3/h Nominale verplaatsing: 7,263 m |
|
Pomp Grundfos Magna3 40-150 F / 250 mm - PN6/10 / 97924271
Spanning: 230 V H max: 15 m P max: 608 W DN afvoer - diameter: 40 DN Max. temperatuur van verpompte vloeistof: 110 °C Max. werkdruk: 10 bar Max. motorstroom: 2,78 A Bestelnummer: 97924271 Nominale stroomsnelheid: 16,03 m3/h Nominale verplaatsing: 9,189 m |
|
Grundfos Magna3 40-180 F / 250 mm circulatiepomp - PN6/10 / 97924272
Spanning: 230 V H max: 18 m P max: 609 W DN afvoer - diameter: 40 DN Max. temperatuur van verpompte vloeistof: 110 °C Max. werkdruk: 10 bar Max. motorstroom: 2,78 A Bestelnummer: 97924272 Nominale stroomsnelheid: 16,04 m3/h Nominale verplaatsing: 9,2 m |
