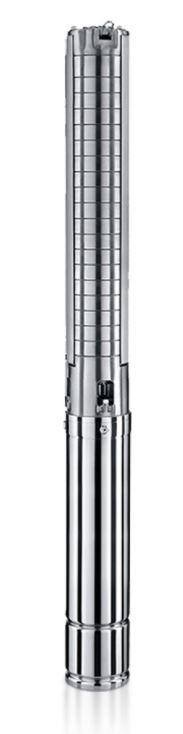

Roestvaststalen dompelpomp 4" B-SP 8-25 / 400 V (F.B. onderwatermotoren)
Accessoires
| Q max maximaal debiet | 180 l/min |
| Spanning | 400 V |
| H max Afvoerhoogte | 159 m |
| P max Maximaal ingangsvermogen | 4 kW |
| DN afvoer - diameter | 2 '' |
| Max. temperatuur van verpompte vloeistof | 35 °C |
| Diameter pomp | 98 mm |
| Huidige | 9,2 A |
| Max. diepgang motor | 100 m |
| Type motor | F.B. submersible motors |
| Variant | Prijs | Beschikbaarheid |
|---|
|
Roestvaststalen dompelpomp 4" B-SP 8-4 / 400 V (F.B. onderwatermotoren)
Q max: 180 l/min Spanning: 400 V H max: 25 m P max: 0,55 kW DN afvoer - diameter: 2 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 1,9 A Max. diepgang motor: 300 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 8-5 / 400 V (F.B. onderwatermotoren)
Q max: 180 l/min Spanning: 400 V H max: 32 m P max: 0,75 kW DN afvoer - diameter: 2 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 2,2 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 8-7 / 400 V (F.B. onderwatermotoren)
Q max: 180 l/min Spanning: 400 V H max: 44 m P max: 1,1 kW DN afvoer - diameter: 2 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 3,4 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 8-10 / 400 V (F.B. onderwatermotoren)
Q max: 180 l/min Spanning: 400 V H max: 64 m P max: 1,5 kW DN afvoer - diameter: 2 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 4,8 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 8-12 / 400 V (F.B. onderwatermotoren)
Q max: 180 l/min Spanning: 400 V H max: 76 m P max: 2,2 kW DN afvoer - diameter: 2 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 6,4 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 8-12 / 3x230 V (F.B. onderwatermotoren)
Q max: 180 l/min Spanning: 3x230 V H max: 76 m P max: 2,2 kW DN afvoer - diameter: 2 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 11 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 8-15 / 400 V (F.B. onderwatermotoren)
Q max: 180 l/min Spanning: 400 V H max: 95 m P max: 2,2 kW DN afvoer - diameter: 2 m Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 6,4 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 8-18 / 400 V (F.B. onderwatermotoren)
Q max: 180 l/min Spanning: 400 V H max: 114 m P max: 3 kW DN afvoer - diameter: 2 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 8,4 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 8-21 / 400 V (F.B. onderwatermotoren)
Q max: 180 l/min Spanning: 400 V H max: 133 m P max: 4 kW DN afvoer - diameter: 2 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 9,2 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 8-30 / 400 V (F.B. onderwatermotoren)
Q max: 180 l/min Spanning: 400 V H max: 191 m P max: 5,5 kW DN afvoer - diameter: 2 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 12,4 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 8-36 / 400 V (F.B. onderwatermotoren)
Q max: 180 l/min Spanning: 400 V H max: 224 m P max: 5,5 kW DN afvoer - diameter: 2 m Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 12,4 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 8-25 / 400 V (Franklin Electric)
Q max: 180 l/min Spanning: 400 V H max: 159 m P max: 4 kW DN afvoer - diameter: 2 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 9,9 A Max. diepgang motor: 100 m Type motor: Franklin Electric |
