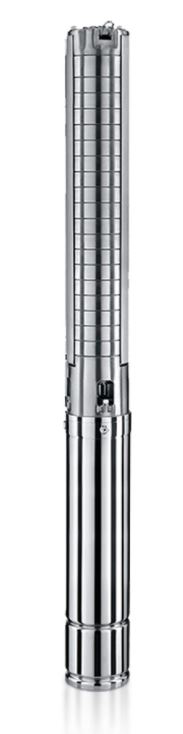

Roestvaststalen dompelpomp 4" B-SP 3-25 / 230 V (F.B. onderwatermotoren)
Accessoires
| Q max maximaal debiet | 70 l/min |
| Spanning | 230 V |
| H max Afvoerhoogte | 157 m |
| P max Maximaal ingangsvermogen | 1,5 kW |
| DN afvoer - diameter | 5/4 '' |
| Max. temperatuur van verpompte vloeistof | 35 °C |
| Diameter pomp | 98 mm |
| Huidige | 10,6 A |
| Max. diepgang motor | 100 m |
| Type motor | F.B. submersible motors |
| Variant | Prijs | Beschikbaarheid |
|---|
|
Roestvaststalen dompelpomp 4" B-SP 3-6 / 230 V (F.B. onderwatermotoren)
Q max: 70 l/min Spanning: 230 V H max: 38 m P max: 0,37 kW DN afvoer - diameter: 5/4 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 3,6 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 3-9 / 230 V (F.B. onderwatermotoren)
Q max: 70 l/min Spanning: 230 V H max: 56 m P max: 0,55 kW DN afvoer - diameter: 5/4 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Max. diepgang motor: 100 m Max. motorstroom: 4,8 A Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 3-12 / 230 V (F.B. onderwatermotoren)
Q max: 70 l/min Spanning: 230 V H max: 75 m P max: 0,75 kW DN afvoer - diameter: 5/4 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Max. diepgang motor: 100 m Max. motorstroom: 5,8 A Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 3-15 / 230 V (F.B. onderwatermotoren)
Q max: 70 l/min Spanning: 230 V H max: 94 m P max: 1,1 kW DN afvoer - diameter: 5/4 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Max. diepgang motor: 100 m Max. motorstroom: 8,2 A Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 3-22 / 230 V (F.B. onderwatermotoren)
Q max: 70 l/min Spanning: 230 V H max: 138 m P max: 1,5 kW DN afvoer - diameter: 5/4 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 10,6 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 3-25 / 400 V (F.B. onderwatermotoren)
Q max: 70 l/min Spanning: 400 V H max: 157 m P max: 1,5 kW DN afvoer - diameter: 5/4 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 4,8 A Max. diepgang motor: 300 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 3-25 / 3x230 V (F.B. onderwatermotoren)
Q max: 70 l/min Spanning: 3x230 V H max: 157 m P max: 1,5 kW DN afvoer - diameter: 5/4 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 8,4 A Max. diepgang motor: 100 m Type motor: F.B. submersible motors |
|
Roestvaststalen dompelpomp 4" B-SP 3-25 / 230 V (Franklin Electric)
Q max: 70 l/min Spanning: 230 V H max: 157 m P max: 1,5 kW DN afvoer - diameter: 5/4 '' Max. temperatuur van verpompte vloeistof: 35 °C Diameter pomp: 98 mm Huidige: 10 A Max. diepgang motor: 100 m Type motor: Franklin Electric |
