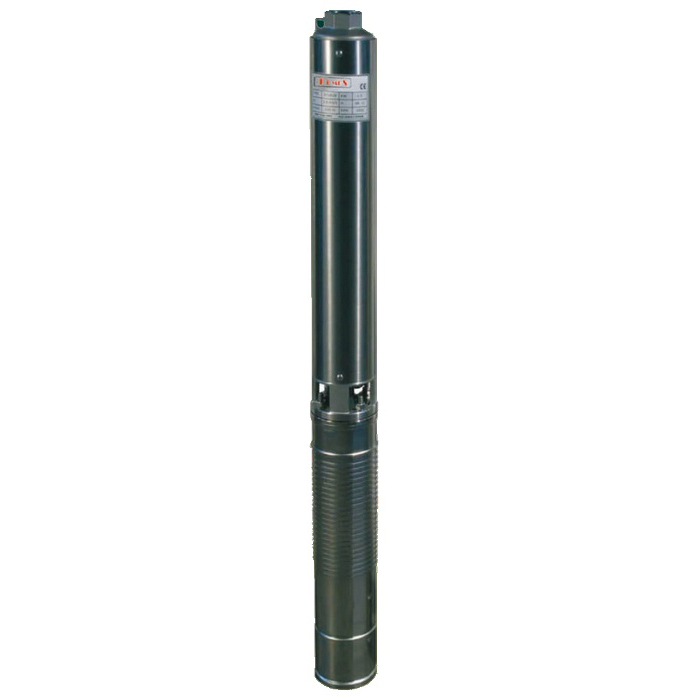

Dompelpomp 4" PumpS SM 1835 / 400V (F.B onderwatermotor)
| Q max maximaal debiet | 100 l/min |
| Spanning | 400 V |
| H max Afvoerhoogte | 231 m |
| P max Maximaal ingangsvermogen | 3,00 kW |
| DN afvoer - diameter | 5/4 '' |
| Kabellengte | nach Bedarf |
| Hoogte | 1531 mm |
| Gewicht | 25,40 kg |
| Max. temperatuur van verpompte vloeistof | 30 °C |
| Diameter pomp | 98 mm |
| Huidige | 8,4 A |
| Max. diepgang motor | 70 m |
| Type motor | F.B. submersible motors |
| Variant | Prijs | Beschikbaarheid |
|---|
|
Ponorné čerpadlo 4" PumpS SM 1807/ 400V (F.B submersible motor)
Q max: 100 l/min Spanning: 400 V H max: 46 m P max: 0,55 kW DN afvoer - diameter: 5/4 '' Kabellengte: 2m nach Bedarf Hoogte: 648 m Gewicht: 11,00 kg Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: 2,1 A Max. diepgang motor: 70 m |
|
Dompelpomp 4" PumpS SM 1818 / 400V (F.B onderwatermotor)
Q max: 100 l/min Spanning: 400 V H max: 120 m P max: 1,50 kW DN afvoer - diameter: 5/4 '' Kabellengte: nach Bedarf Hoogte: 965 mm Gewicht: 16,80 kg Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: 4,8 A Max. diepgang motor: 70 m Type motor: F.B. submersible motors |
|
Dompelpomp 4" PumpS SM 1827 / 400V (F.B onderwatermotor)
Q max: 100 l/min Spanning: 400 V H max: 175 m P max: 2,20 kW DN afvoer - diameter: 5/4 '' Kabellengte: nach Bedarf Hoogte: 1304 mm Gewicht: 21,20 kg Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: 6,2 A Max. diepgang motor: 70 m Type motor: F.B. submersible motors |
|
Dompelpomp 4" PumpS SM 1805 / 400V (F.B onderwatermotor)
Q max: 100 l/min Spanning: 400 V H max: 30 m P max: 0,37 kW DN afvoer - diameter: 5/4 '' Hoogte: 658 mm Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: A Type motor: F.B. submersible motors |
