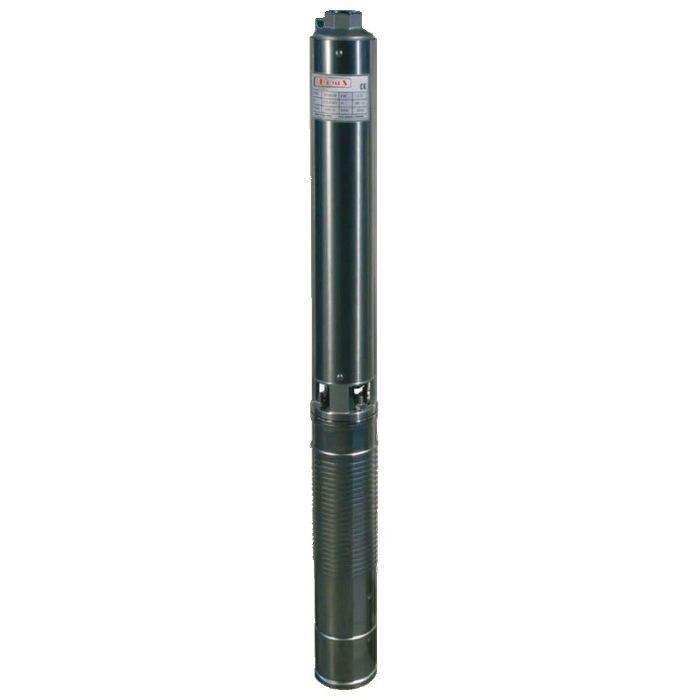

Dompelpomp 4" PumpS SM 1809 / 3x230V (F.B onderwatermotor)
| Q max maximaal debiet | 100 l/min |
| Spanning | 3x230 V |
| H max Afvoerhoogte | 59 m |
| P max Maximaal ingangsvermogen | 0.75 kW |
| DN afvoer - diameter | 5/4 '' |
| Kabellengte | podľa požiadavky |
| Hoogte | 741 mm |
| Gewicht | 12.70 kg |
| Max. temperatuur van verpompte vloeistof | 30 °C |
| Diameter pomp | 98 mm |
| Huidige | 4,1 A |
| Max. diepgang motor | 70 m |
| Type motor | F.B. submersible motors |
| Variant | Prijs | Beschikbaarheid |
|---|
|
Dompelpomp 4" PumpS SM 1809 / 230V (F.B onderwatermotor)
Q max: 100 l/min Spanning: 230 V H max: 59 m P max: 0,75 kW DN afvoer - diameter: 5/4 '' Kabellengte: m Hoogte: 741 mm Gewicht: 12,70 kg Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: 5.9 A Max. diepgang motor: 70 m Type motor: F.B. submersible motors |
|
Dompelpomp 4" PumpS SM 1827 / 3x230V (F.B onderwatermotor)
Q max: 100 l/min Spanning: 3x230 V H max: 175 m P max: 2.20 kW DN afvoer - diameter: 5/4 '' Kabellengte: podľa požiadavky Hoogte: 1304 mm Gewicht: 21.20 kg Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: 10.9 A Max. diepgang motor: 70 m Type motor: F.B. submersible motors |
|
Dompelpomp 4" PumpS SM 1818 / 3x230V (F.B onderwatermotor)
Q max: 100 l/min Spanning: 3x230 V H max: 120 m P max: 1.5 kW DN afvoer - diameter: 5/4 '' Kabellengte: podľa požiadavky Hoogte: 1005 mm Gewicht: 16.80 kg Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: 8.1 A Max. diepgang motor: 70 m |
|
Dompelpomp 4" PumpS SM 1814 / 3x230V (F.B onderwatermotor)
Q max: 100 l/min Spanning: 3x230 V H max: 93 m P max: 1.10 kW DN afvoer - diameter: 5/4 '' Kabellengte: podľa požiadavky Hoogte: 879 mm Gewicht: 14.20 kg Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: 5.9 A Max. diepgang motor: 70 m Type motor: F.B. submersible motors |
|
Dompelpomp 4" PumpS SM 1807 / 3x230V (F.B onderwatermotor)
Q max: 100 l/min Spanning: 3x230 V H max: 46 m P max: 0.55 kW DN afvoer - diameter: 5/4 '' Kabellengte: podľa požiadavky Hoogte: 668 mm Gewicht: 11.00 kg Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: 3.8 A Max. diepgang motor: 70 m Type motor: F.B. submersible motors |
