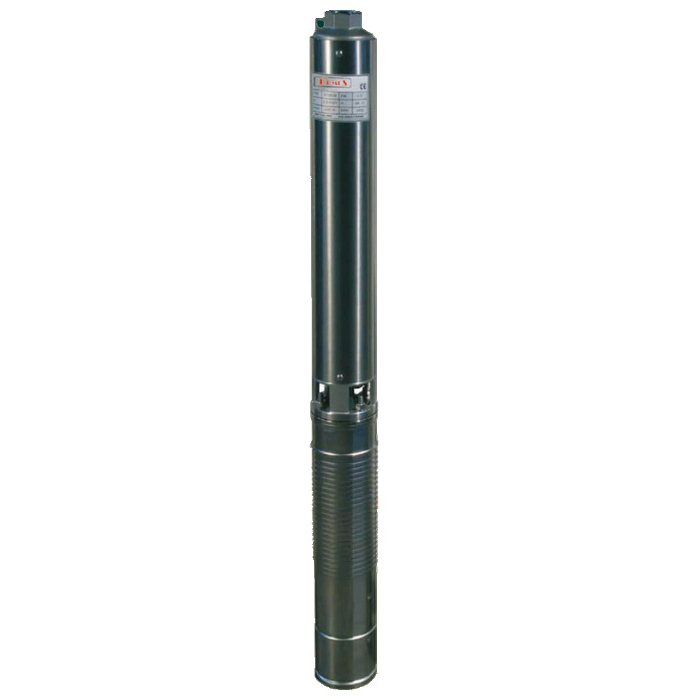

Dompelpomp 4" PumpS SM 1805 / 230V (F.B onderwatermotor)
| Q max maximaal debiet | 100 l/min |
| Spanning | 230 V |
| H max Afvoerhoogte | 30 m |
| P max Maximaal ingangsvermogen | 0,37 kW |
| DN afvoer - diameter | 5/4 mm |
| Hoogte | 648 mm |
| Max. temperatuur van verpompte vloeistof | 30 °C |
| Diameter pomp | 98 mm |
| Type motor | F.B. submersible motors |
| Variant | Prijs | Beschikbaarheid |
|---|
|
Dompelpomp 4" PumpS SM 1809 / 230V (F.B onderwatermotor)
Q max: 100 l/min Spanning: 230 V H max: 59 m P max: 0,75 kW DN afvoer - diameter: 5/4 '' Kabellengte: m Hoogte: 741 mm Gewicht: 12,70 kg Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: 5.9 A Max. diepgang motor: 70 m Type motor: F.B. submersible motors |
|
Dompelpomp 4" PumpS SM 1807 / 230V (F.B onderwatermotor)
Q max: 100 l/min Spanning: 230 V H max: 46 m P max: 0,55 kW DN afvoer - diameter: 5/4 '' Kabellengte: nach Bedarf Hoogte: 668 mm Gewicht: 11,00 kg Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: 4.6 A Max. diepgang motor: 70 m Type motor: F.B. submersible motors |
|
Dompelpomp 4" PumpS SM 1818 / 230V (F.B onderwatermotor)
Q max: 100 l/min Spanning: 230 V H max: 120 m P max: 1,5 kW DN afvoer - diameter: 5/4 '' Kabellengte: nach Bedarf Hoogte: 1005 mm Gewicht: 16,80 kg Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: 10.6 A Max. diepgang motor: 70 m Type motor: F.B. submersible motors |
|
Dompelpomp 4" PumpS SM 1805 / 400V (F.B onderwatermotor)
Q max: 100 l/min Spanning: 400 V H max: 30 m P max: 0,37 kW DN afvoer - diameter: 5/4 '' Hoogte: 658 mm Max. temperatuur van verpompte vloeistof: 30 °C Diameter pomp: 98 mm Huidige: A Type motor: F.B. submersible motors |
